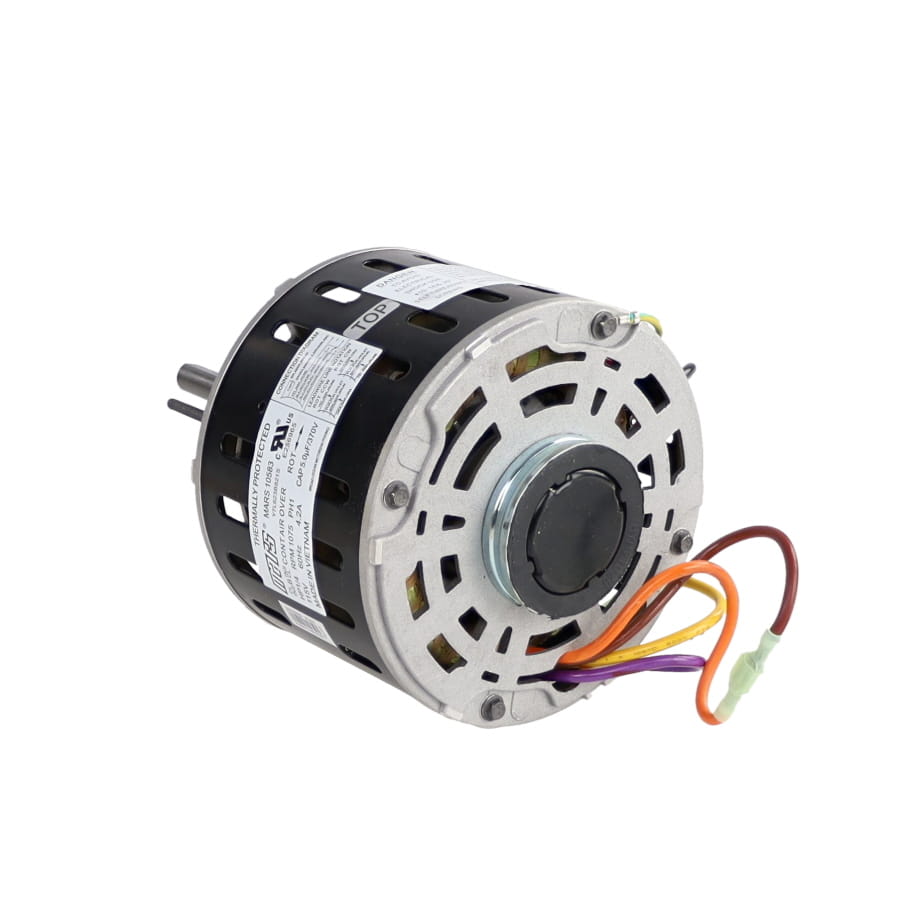

BLOWER MOTOR DIRECT DRIVE 1/4HP 115V 1075/3
Place your order by 4:30 pm for next-day pickup at the branch or delivery to your office or jobsite.
Mars® Direct Drive Furnace Blower Motor, Application Type: Fan and Blower Motors, 1/4 hp, 115 VAC, 4.2 FLA, 60 Hz, 1 ph, 1075 rpm, 3 Speed, Open Air Over, NEMA 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible, Sleeve Bearing, All Angle Mount, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia

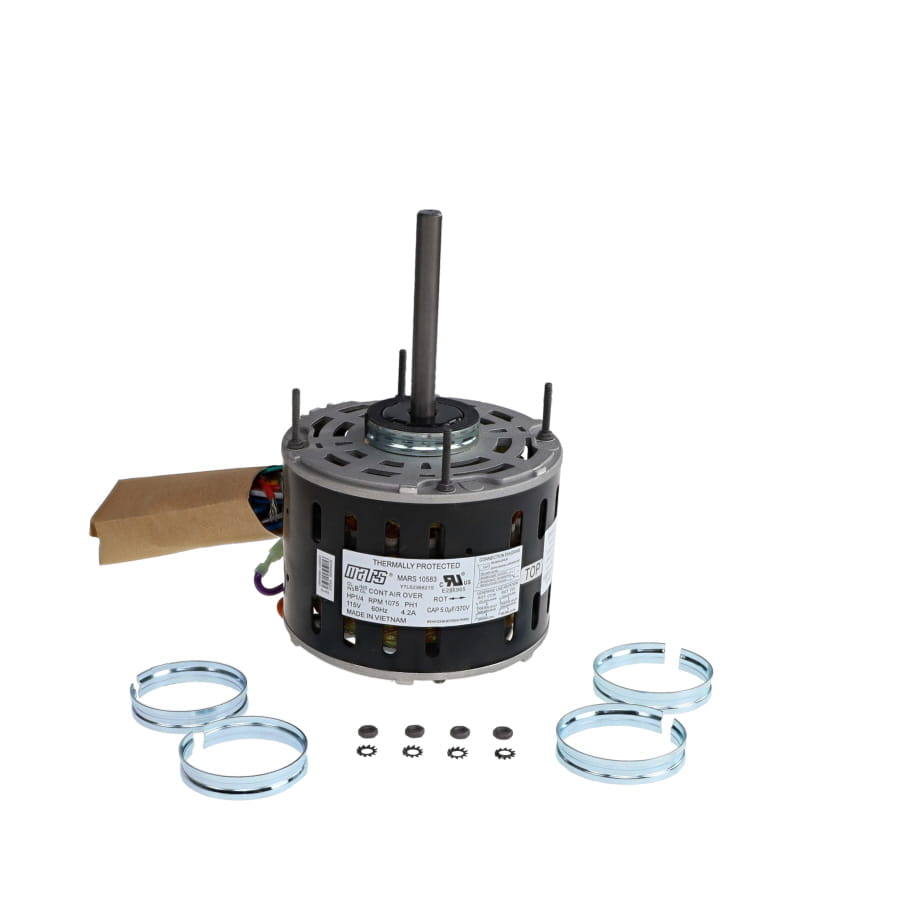

MARS direct drive furnace blower motors are three speed standard efficiency models. All models are electrically reversible and include 2-1/4 inch resilient rings for base mounting. These models have all angle sleeve bearings and have open air over enclosures.
- Rheem® mounting holes
- 1/2 in extended thru-bolt
- 2-1/4 in resilient rings
- Fan duty, continuous, air-over
- Comes with auto thermal protection
- Capacitor not included
- 5 uF at 370 VAC capacitor required
Product Weight: 10.3lbs
Shipping Dimensions: 14.8in X 6.7in X 7.1in
Shipping Weight: 11.35lbs
- Amperage Rating
- 4.2 FLA
- Application Type
- Fan & Blower Motors
- Bearing Type
- Sleeve
- Capacitor
- 5 uF at 370 VAC
- Dimensions
- 5-1/2 in Dia
- Enclosure Type
- Open Air Over
- Frame Style
- NEMA 48
- Frequency Rating
- 60 Hz
- Horsepower
- 1/4
- Insulation Class
- Class B
- Motor Type
- All Angle
- Number of Speeds
- 3
- Phase
- 1
- Rotation Type
- Reversible
- Shaft Size
- 1/2 in Dia x 4-1/2 in L
- Speed
- 1075
- Temperature Rating
- 60 deg C
- Voltage
- 115
